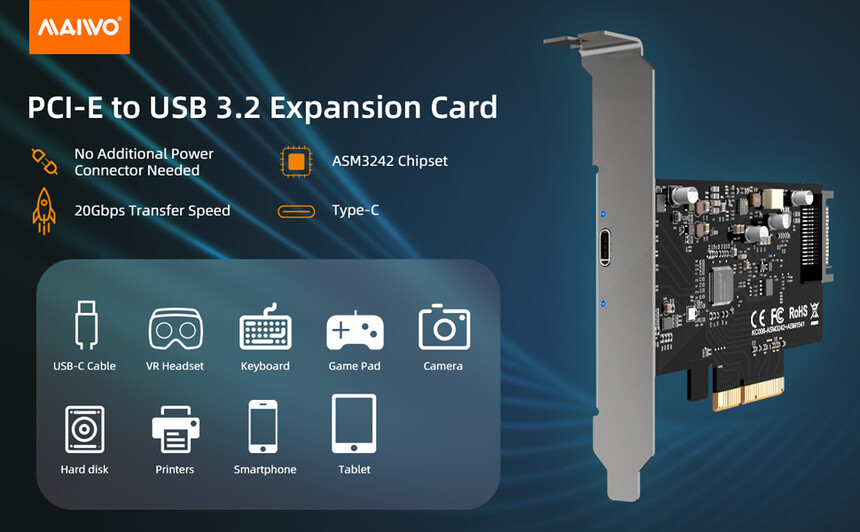

MAIWO KC008 Type USB C PCI-Express to USB 3.2 Gen2x2 PCIe PCI-E PCI Express Expansion Card Adapter
One USB 3.2 20Gbps Type-C downstream receptacle port. Up to 20Gbps data transfer speed.
Featuring the ASMedia ASM3242 host controller using x4 lanes of PCIe 3.0, this card is fully capable of speeds up to 20Gbps enabling fast access to high-performance devices like NVMe drives and SSDs
Equipped with SATA 15 Pin power connect to power any USB devices from your PC power supply. It ensure stable power during high speed transmission.

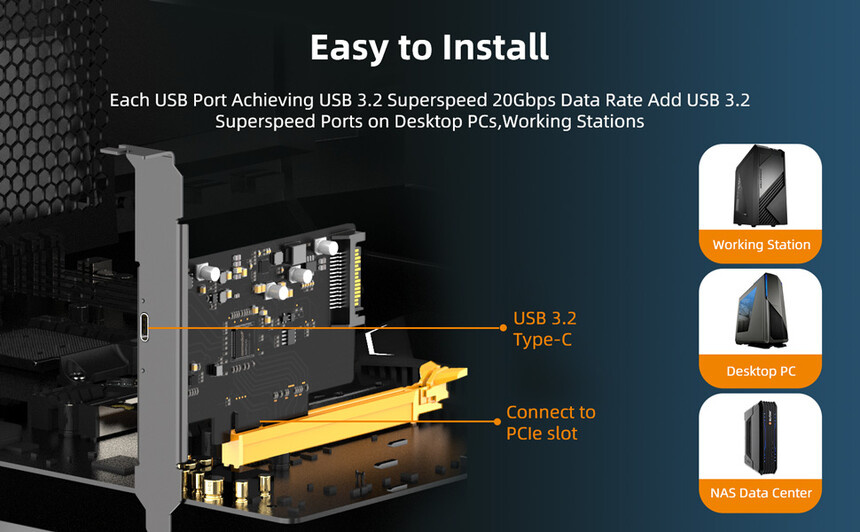

PCIe 3.0 x4 card fits in PCIe x4 or x8 or x16 slot, compatible with PCIe 4.0 / PCIe 5.0,backwards compatible with PCIe 2.0
Compatible with Windows 8/10, Not support Windows7/Linux
PRODUCT DESCRIPTION
PRODUCT PARAMETERS
Model No.
KC008
Type
PCIe X4 to USB 3.2 Desktop Expansion Card
Supported Devices
Desktop PC with PCIe slot X4 / X8 / X16
Power Supply
Powered by PCIe slot
Internal Interface
PCIe ×4
Interface
USB 3.2, 20 Gbps bandwidth
Material
Eco-friendly fiberglass PCB + aluminum bracket
Function
Data transfer
Indicator Light
Blue light on when powered; Link light on when device connected (off when no device detected or connection faulty)
